M3x10 Phillips Countersunk Screw – Pack of 10
Safe shopping
Your data is always protected
Sale_coupon_15
6.00 EGP
In stock
In stock
12
People watching this product now!
-
Return within 14 days
Payment Methods:
Description

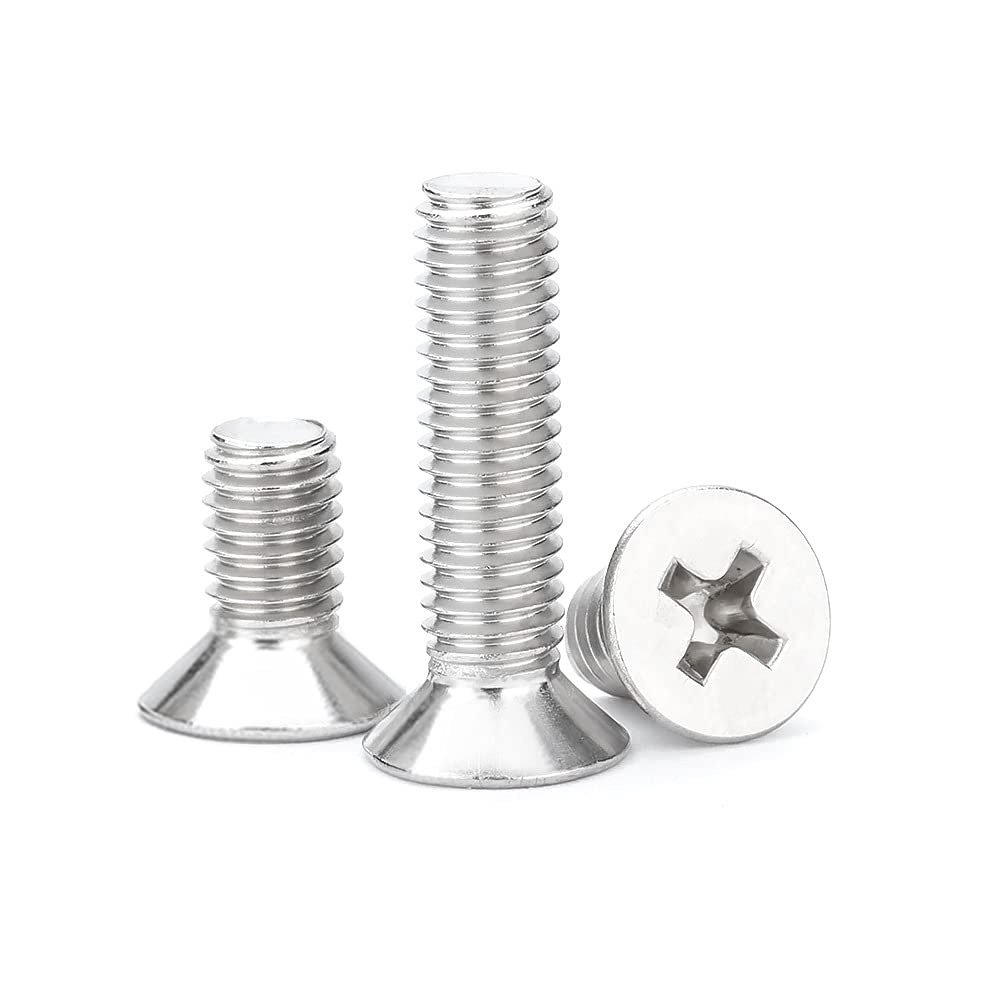

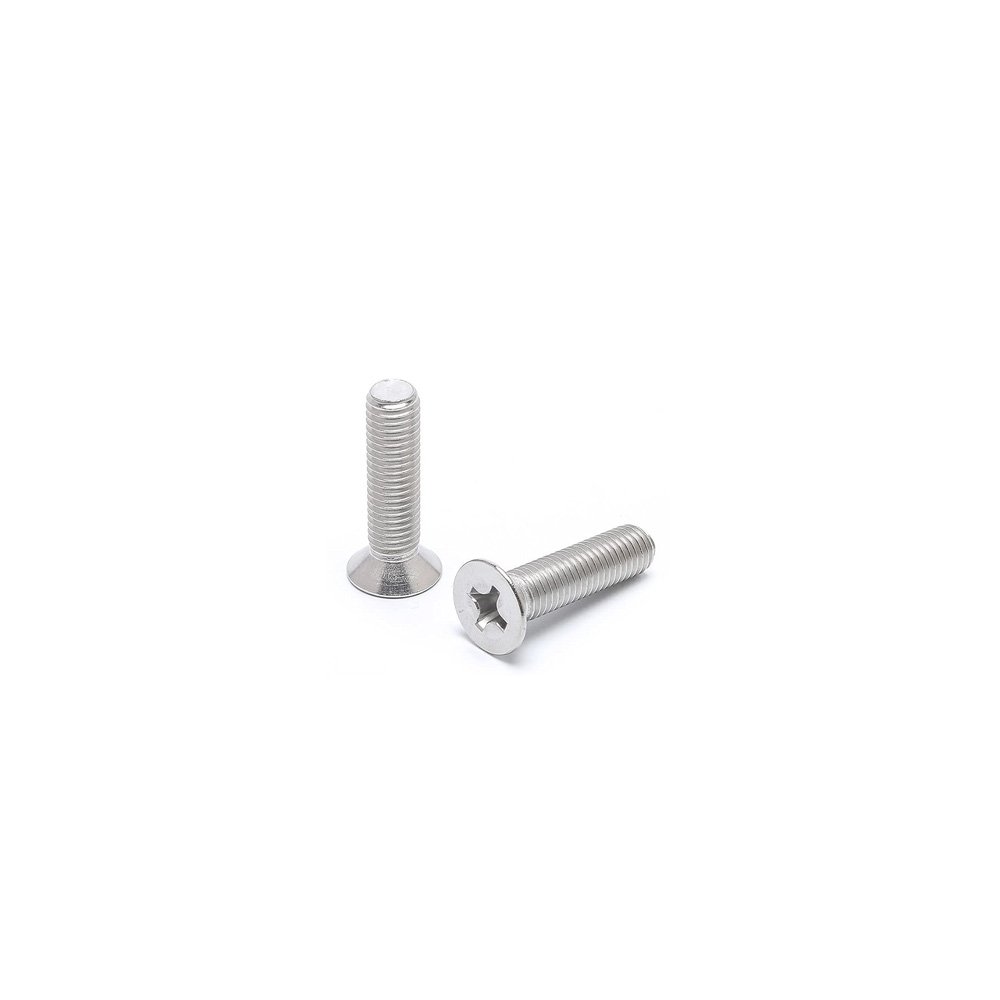

M3x10 Phillips Countersunk Screw (Pack of 10) is a set of short metric machine fasteners featuring a flat, cone-shaped head designed to sit flush with or below the material surface, engineered for clean, snag-free joints in low-clearance assemblies.
⚙️ Technical Specifications
- Thread Size: M3 (3 mm major diameter)
- Thread Pitch: 0.5 mm (Standard metric coarse thread)
- Length: 10 mm (Total length; measured from the top of the head to the tip)
- Head Style: Countersunk (Flat Head) (80 to 90-degree cone underside for flush mounting)
- Drive Type: Phillips (Cross-recessed No. 1 drive slot)
- Material Option: High-tensile Carbon Steel (Zinc-plated) or 304 Stainless Steel (corrosion resistant)
- Package Quantity: 10 Pieces per pack
🛠️ Practical Applications
- Slim Enclosures: Ideal for securing thin metal or plastic faceplates and lid covers where internal depth is highly restricted.
- Drone & RC Frames: Secures carbon fiber plates and landing gear where a completely flat bottom is required for aerodynamics and smooth landings.
- Hinges & Hardware: Perfect for mounting small cabinet hinges or drawer slides where a protruding bolt head would block the sliding mechanism.
- 3D Printed Parts: Easily installs into countersunk plastic recess holes for clean, professional DIY project finishes.
