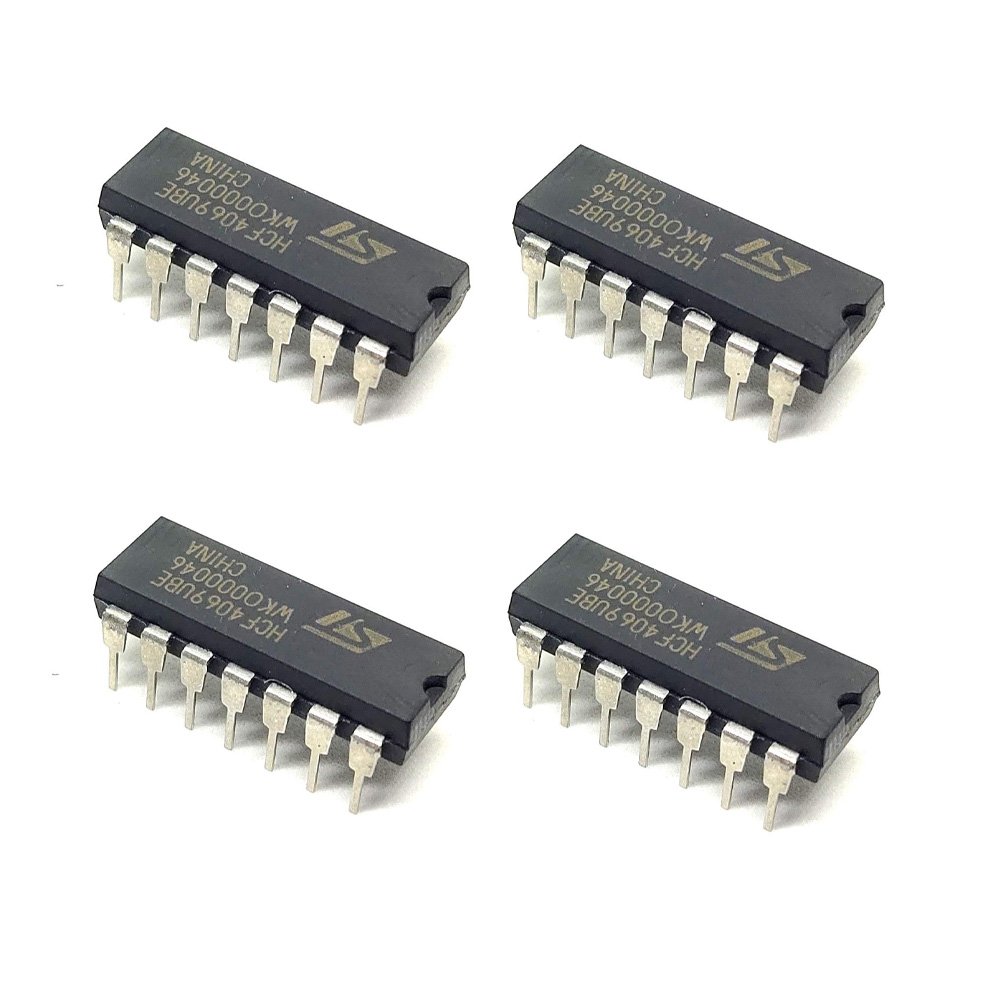

CD4069 IC Hex Inverter/NOT Gate DIP-14 - Image 2

CD4069 IC Hex Inverter/NOT Gate DIP-14

Name: CD4069 IC Hex Inverter/NOT Gate DIP-14 | Flux Electronix
SKU: 27321
Price: 17.00 EGP
Availability: InStock

SKU: 27321

Safe shopping

Your data is always protected

Sale_coupon_15

17.00 EGP

In stock

Compare

Add to wishlist

19 People watching this product now!

In-Store Pickup

Everyday from 9 AM to 7 PM

ARAMEX Shipping

2-3 Days

Total fees when checkout

Return within 14 days

More details

Payment Methods:

Description

CD4069 Hex Inverter / NOT Gate IC (DIP-14) is a versatile, high-voltage CMOS integrated circuit containing six independent inverter gates, engineered for logic signal inversion, pulse generation, and wave-shaping applications.

⚙️ Technical Specifications

Logic Function: Hex Inverter (6 independent NOT gates in a single chip)
Supply Voltage Range: Wide operating range from 3V to 18V DC
Package Type: DIP-14 (Dual In-Line Package, 14 pins; ideal for breadboards and sockets)
Current Consumption: Ultra-low static power consumption (typically 20nA at 5V)
Output Drive Current: Symmetric output characteristics with typical sink/source current of 1mA at 5V
Input Impedance: Extremely high input resistance (typically 10¹² Ω), reducing loading effects on preceding circuits

🛠️ Practical Applications

Logic Signal Inversion: Reverses binary state logic inputs (HIGH to LOW and vice-versa) across digital control systems.
Clock & Pulse Generators: Easily configured with a resistor and capacitor to build simple square-wave oscillators and RC timers.
Debouncing Circuits: Cleans up noisy input signals coming from mechanical buttons or switches before they reach microcontrollers.
Linear Amplifiers: Due to its unbuffered design, it can be biased into linear operation to act as a low-cost audio pre-amplifier.
