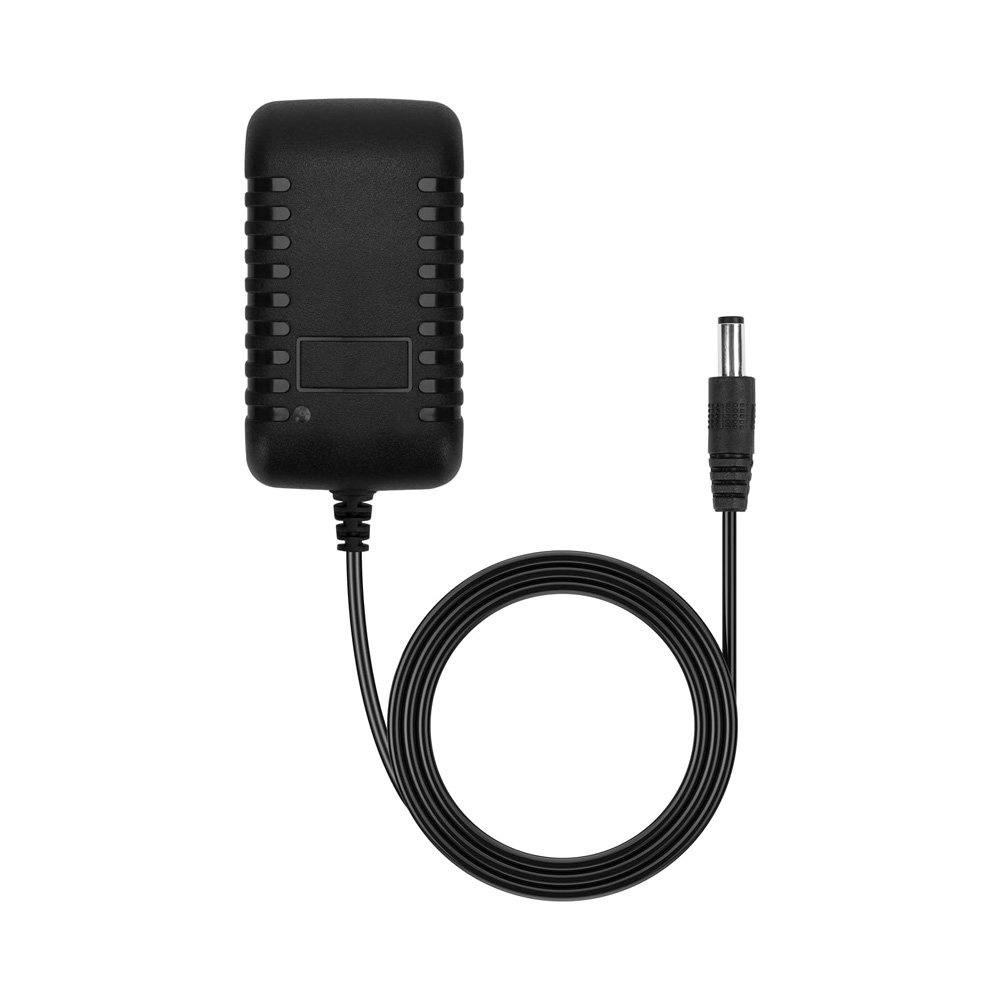

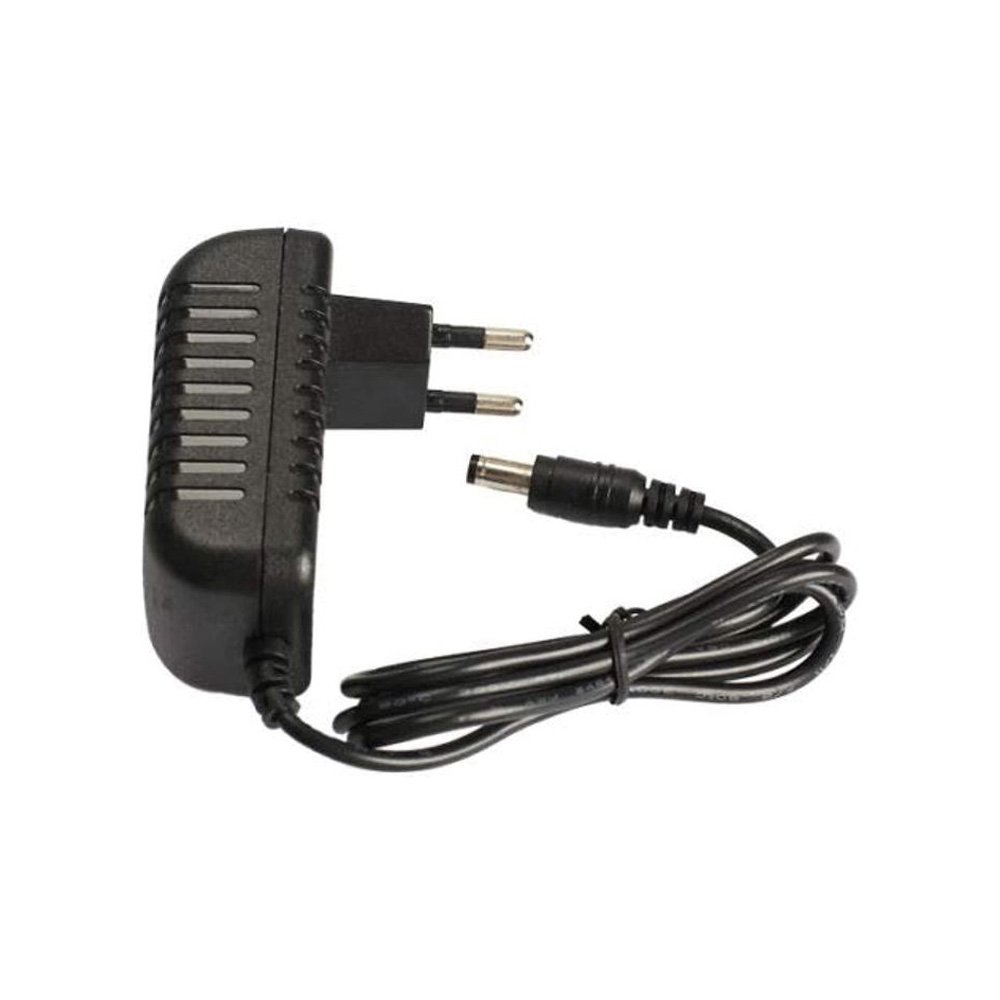

3S Lithium Battery Charger Adapter 12.6Vdc / 1A

The 3S Lithium Battery Charger Adapter 12.6V DC is designed to safely charge 3-cell (3S) Li-ion or LiPo battery packs with a nominal voltage of 11.1V and a full-charge voltage of 12.6V. It uses CC/CV (Constant Current/Constant Voltage) charging to provide a controlled and reliable charging process.

Key Features

• Output Voltage: 12.6V DC
• Charging Current: Typically 1A for this model
• Battery Type: 3S Li-ion / LiPo battery packs
• Input: 100–240V AC, 50/60Hz
• Charging Method: CC/CV
• Connector: 5.5 × 2.5mm DC barrel plug
• Polarity: Center positive (+)
• LED Indicator: Red while charging, green when fully charged/standby
• Protection: Overcharge, overcurrent, and short-circuit protection
• Applications: 18650 battery packs, DIY power banks, RC vehicles, portable electronics, LED lighting, and other 3S lithium-battery projects.

Important: This charger should only be used with a compatible 3S lithium battery pack and the correct connector/polarity. A 3S pack reaches 12.6V when fully charged (4.2V per cell
