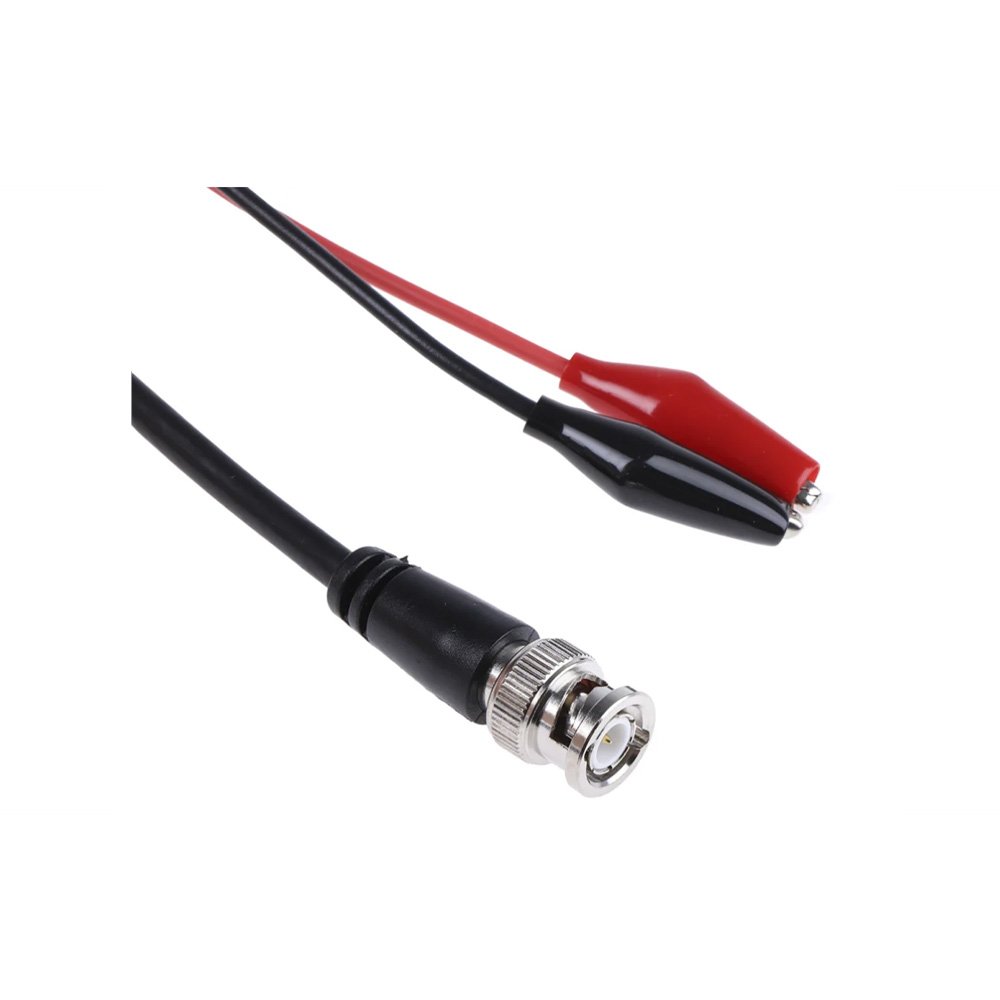

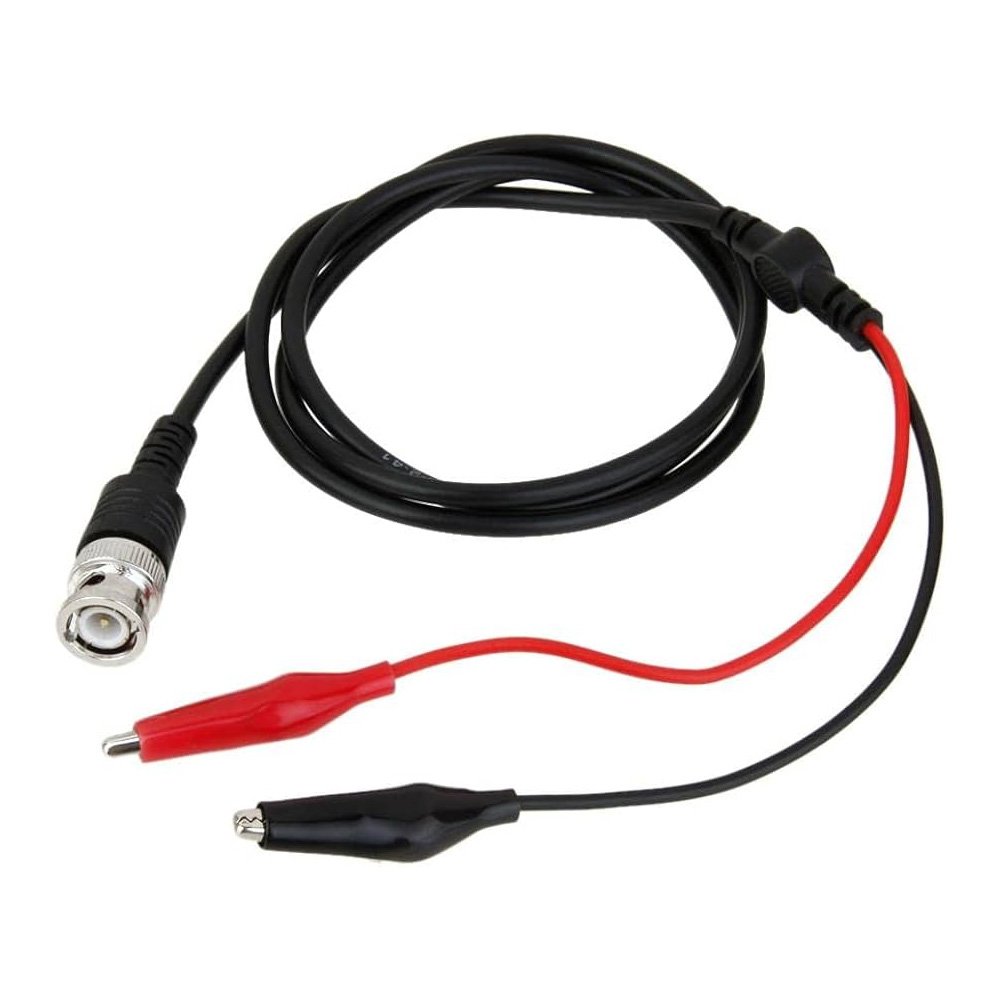

BNC to Crocodile Alligator Clip Test Leads 1M Length
Safe shopping
Your data is always protected
Sale_coupon_15
85.00 EGP
In stock
In stock
16
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
BNC to Alligator Clip Test Lead Cable is a standard coaxial test probe engineered to connect electronic test instruments—such as oscilloscopes, function generators, and spectrum analyzers—directly to circuit components via secure, spring-loaded clamping jaws.
⚙️ Technical Specifications
- Connector Type A: Male BNC Connector (Bayonet Neill–Concelman) with a twist-lock interface.
- Connector Type B: Two Alligator / Crocodile Clips (Color-coded: Red for Positive/Signal, Black for Negative/Ground).
- Cable Type: RG58 or RG174 standard 50-Ohm flexible coaxial cable.
- Insulation Material: High-grade, flexible PVC or Silicone jacket with fully insulated clip boots.
- Cable Length: Typically 1.0 to 1.2 meters (approx. 3.3 to 4 feet).
- Electrical Ratings: Standard maximum capacity up to 500Vp-k and 3A to 5A current limits.
🛠️ Practical Applications
- Oscilloscope Probing: Connects test signals directly from a circuit board under test to the oscilloscope channel input.
- Signal Generator Output: Delivers sine, square, or triangle wave signals from a function generator onto breadboard circuits.
- Lab Testing & Calibration: Ideal for prototyping, academic physics labs, and benchtop hardware debugging.
- Power Supply Linking: Injects low-voltage DC power into test circuits directly from standard bench power units.
