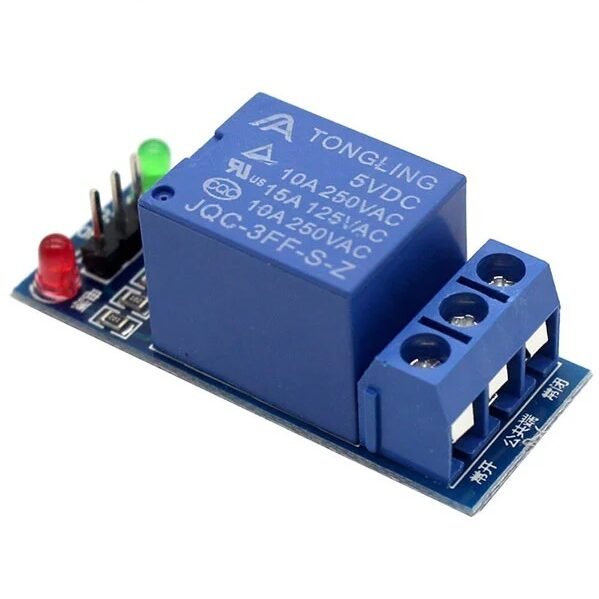

Relay Module 1 Channel – 5Vdc

Relay Module 1 Channel – 5Vdc

• Equipped with high-current relay 250VAC@10A / 30VDC@10A
• It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
• Trigger current: 5mA
• Working voltage: 5V
• Module size: 50 x 26 x 18.5mm (L x W x H)
• Four mounting bolts holes, diameter 3.1mm
• Screw terminals (Terminal Block) provided (C, NC , NO) for quick and easy connection
• Flyback diode to protect your microcontroller
• Input Signal Pin connected to Burg stick for easy accessibility
• LED Status indicators to indicate the relay ON/OFF status

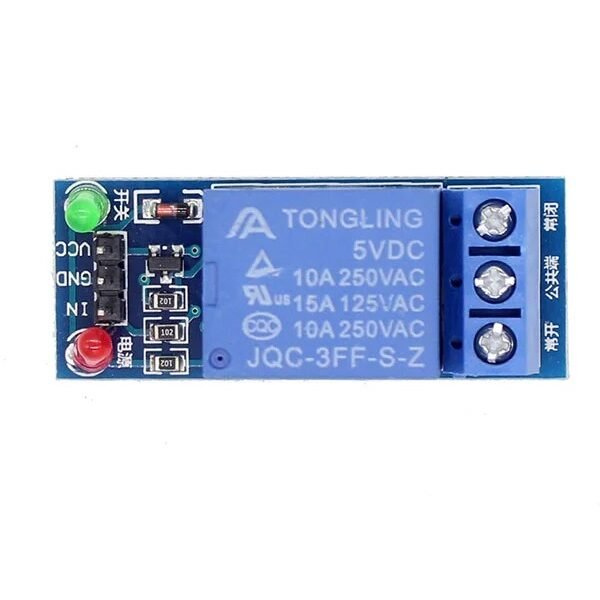

Pinout:

Let’s take a look at the pinout.

Power Pins:

• GND is the common ground pin.
• VCC pin provides power to the module.

Control Pin:

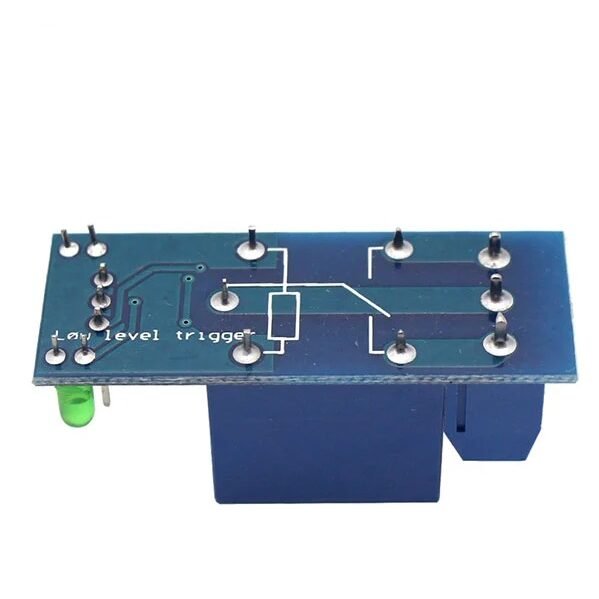

• IN pin is used to control the relay. This is an active low pin, which means that pulling it LOW activates the relay and pulling it HIGH deactivates it.

Output Terminals:

• COM terminal connects to the device you intend to control.
• NC terminal is normally connected to the COM terminal, unless you activate the relay, which breaks the connection.
• NO terminal is normally open, unless you activate the relay that connects it to the COM terminal.

Package Includes:

• 1x Relay Module 1 Channel
