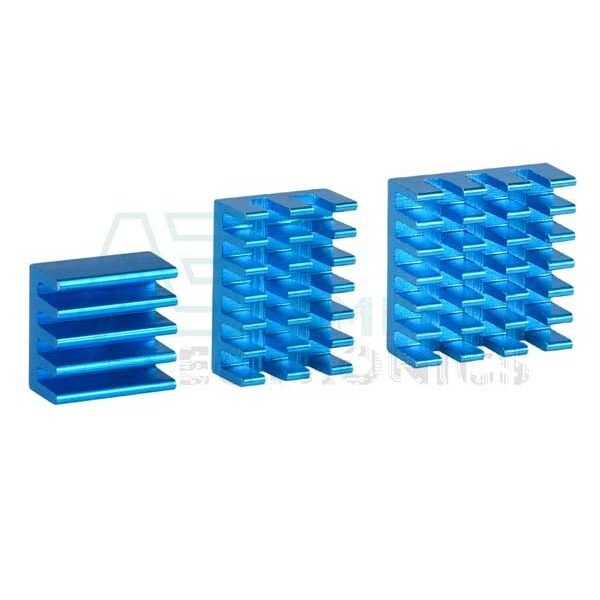

Raspberry Pi4 Aluminum Heatsink Kit (3PCS)

Raspberry Pi4 Aluminum Heatsink Kit (3PCS)

Description:
This heat sink kit specially made for Raspberry Pi 4B to provide better heat dissipation,
this will help the Raspberry Pi preform better and operate safely, Reduce the risk of hardware
failure because of overheating.

The Heatsink have a layer of adhesive on the back of them.
Simply peel the adhesive off and stick onto your board.
it’s function is to cool down the board and make your Raspberry

Specification :

• Material : Aluminum alloy
• Weight : 2g approx.
• Color : Anodized blue

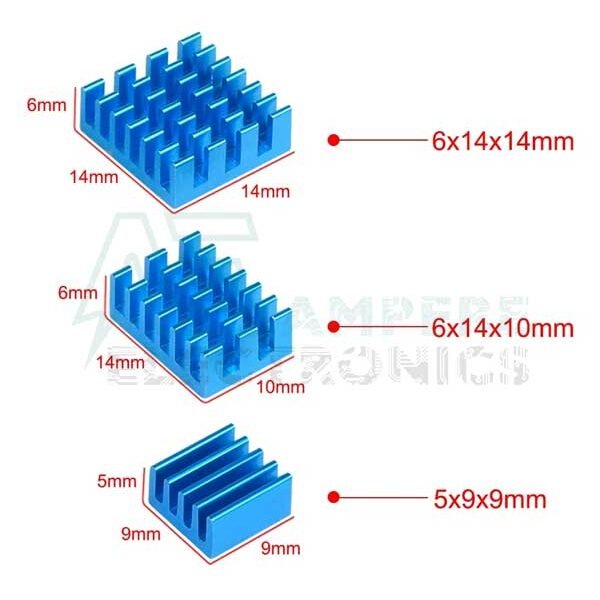

• Dimensions:
  • 1 x 14mm(L) x 14mm(W) x 6mm(H) Heatsink.
  • 1 x 14mm(L) x 10mm(W) x 6mm(H) Heatsink.
  • 1 x 9mm(L) x 9mm(W) x 6mm(H) Heatsink.
• Paste material : Thermal conductivity of silica gel;

Install instructions:

• Make sure the chip modules are free from dirt and grease.
• Peel the protective liner on the base of the heatsink.
• Affix the heatsinks on the chip modules and apply firm pressure.

Package includes:

• 1x Raspberry Pi4 Aluminum Heatsink Kit (3PCS)
