MD13S DC Motor Driver 5-30Vdc, 13A | Cytron

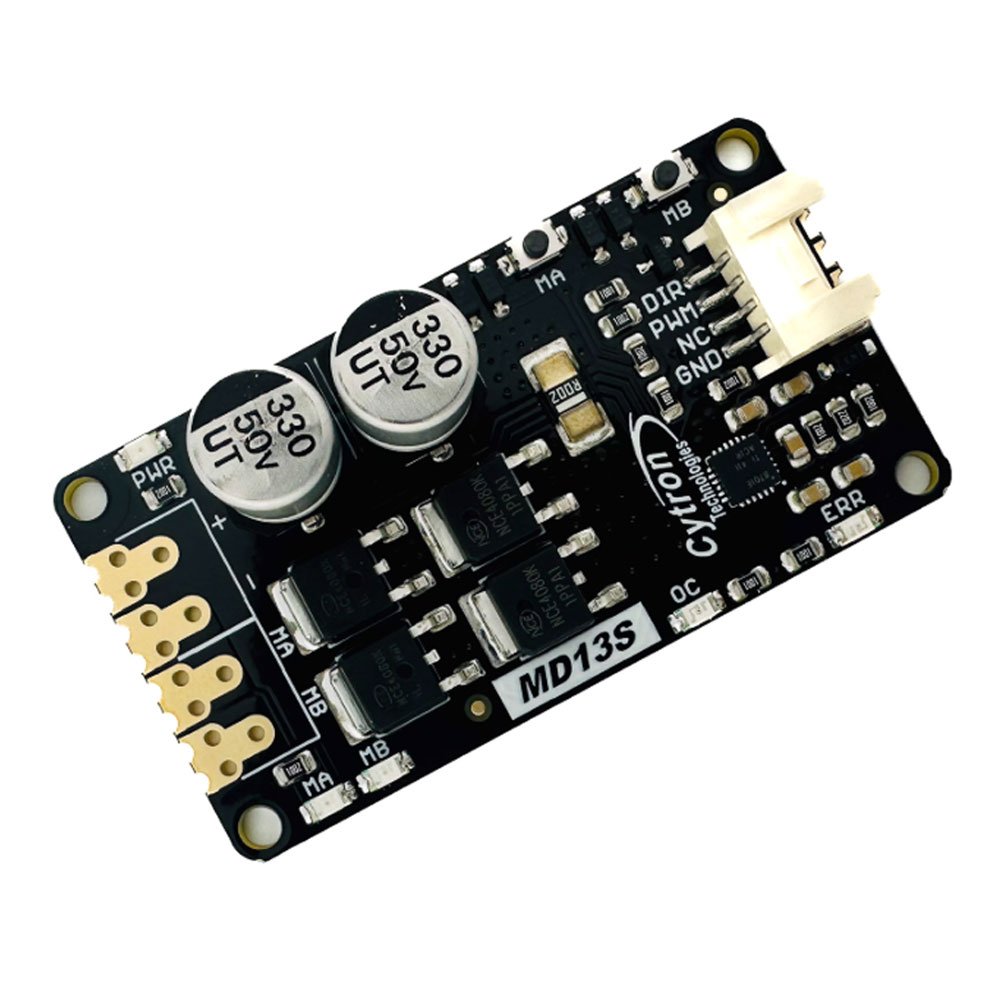

Brushed motor is the most widely used motor because of the ease of operation. Just supply the two terminals DC power supply, the motor will start rotating! Yet, you need a good motor driver to control the speed and direction from microcontroller. You are at the right page, MD13S is one of the easiest to use brushed motor driver.

Comes with different options, you may either choose to have the MD13S that comes with Pre-soldered Terminal Blocks, Non-soldered Terminal Blocks or Pre-soldered Pin Headers.

The Pre-soldered Pin Headers version is specially designed as a detachable & replaceable Motor Driver for the SUMO:BIT board or the complete Sumo Robot powered by SUMO:BIT.

MD13S has great improvement in current protection which MD10C does not have. With new circuit and design, MD13S is able to limit and support current up to 30A max(10 seconds). And the continuous current is at 13A without heatsink (at room temperature of 25°C).

Not to forget it is GROVE compatible, so get yourself a Grove shield. Oh, did I mention? MD13S is smaller than MD10C :)

Which brush motor is good to be driven by MD13S? As long as the motor:

• Is DC Brush motor (Two Terminals)
• Operating voltage from 6V to 30V
• Rated Current ≤ 13A
• Peak Current ≤ 30A

Example of suitable DC brush motor with MD13S (Not limit to):

• SPG50 series
• SPG30 and SPG30E series
• IG45 series
• IG42 series
• IG32 series
• DKM 40W series

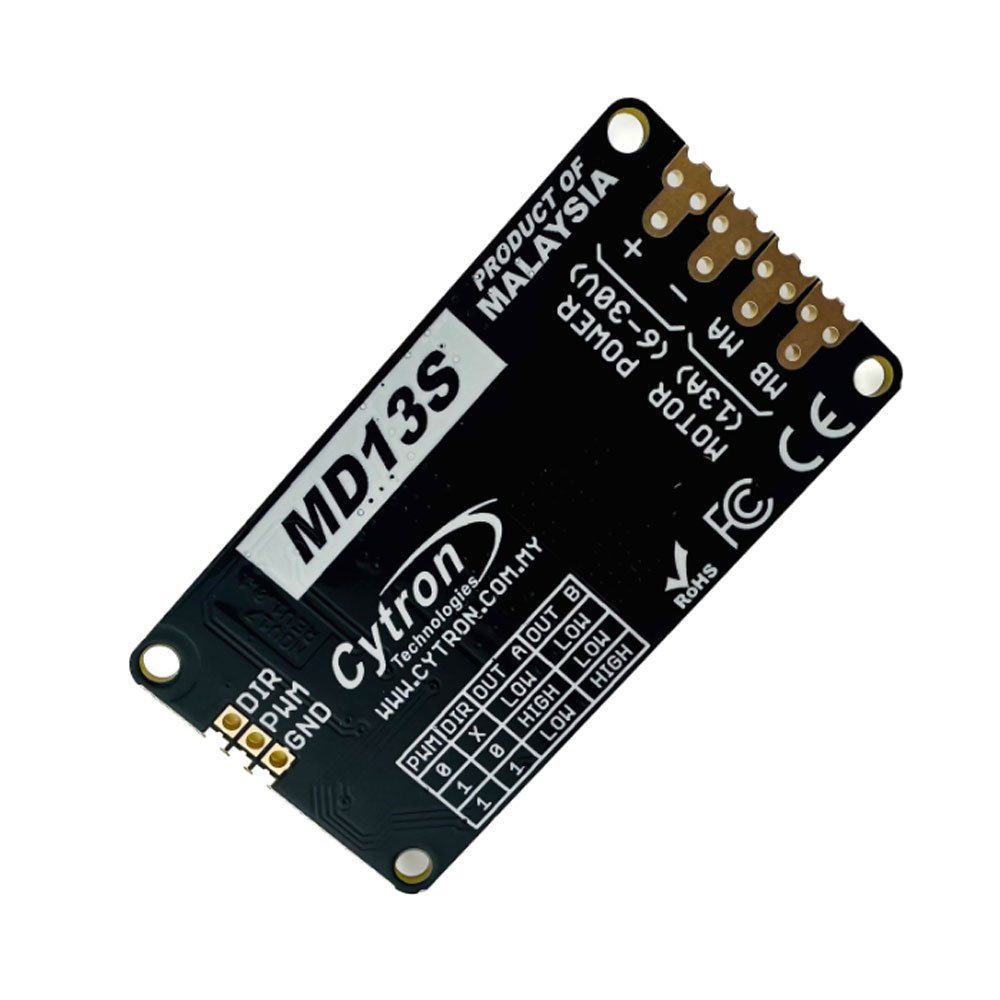

• Bi-directional control for 1 brushed DC motor
• Support motor voltage from  6V to 30VDC
• Maximum current up to 13A continuous and 30A peak (10 seconds)
• GROVE compatible
• 3.3V and 5V logic level input.
• Solid state components provide faster response time and eliminate the wear and tear of mechanical relay
• Fully NMOS H-Bridge for better efficiency and no heat sink is required
• Regenerative Braking
• Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency)
• Support both locked-antiphase and sign-magnitude PWM operation, *NOT RC (Radio Control) PWM
• SMD compatible
• RoHS, FCC and CE compliance

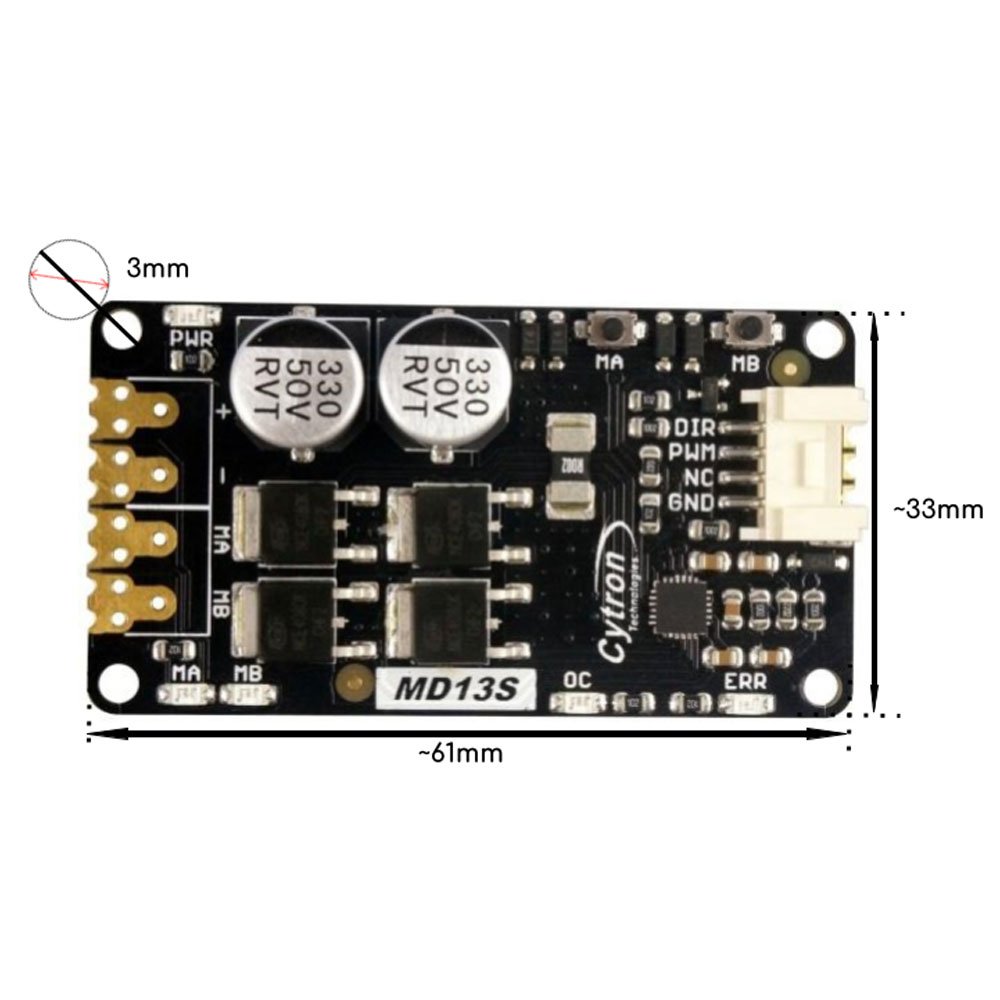

• Dimension: 61mm x 33mm

MD13S with Pre-soldered Terminal Blocks

• 1 x MD13S motor driver board with Pre-soldered 1 Green + 1 Black 2-way terminal blocks
• 1 x Grove connector (Grove to Grove)
  Note: The terminal block, normally Black is for Motor, and Green is for Power
