Long Flex Sensor 4.5Inch, 114mm

Long Flex Sensor 4.5Inch, 114mm

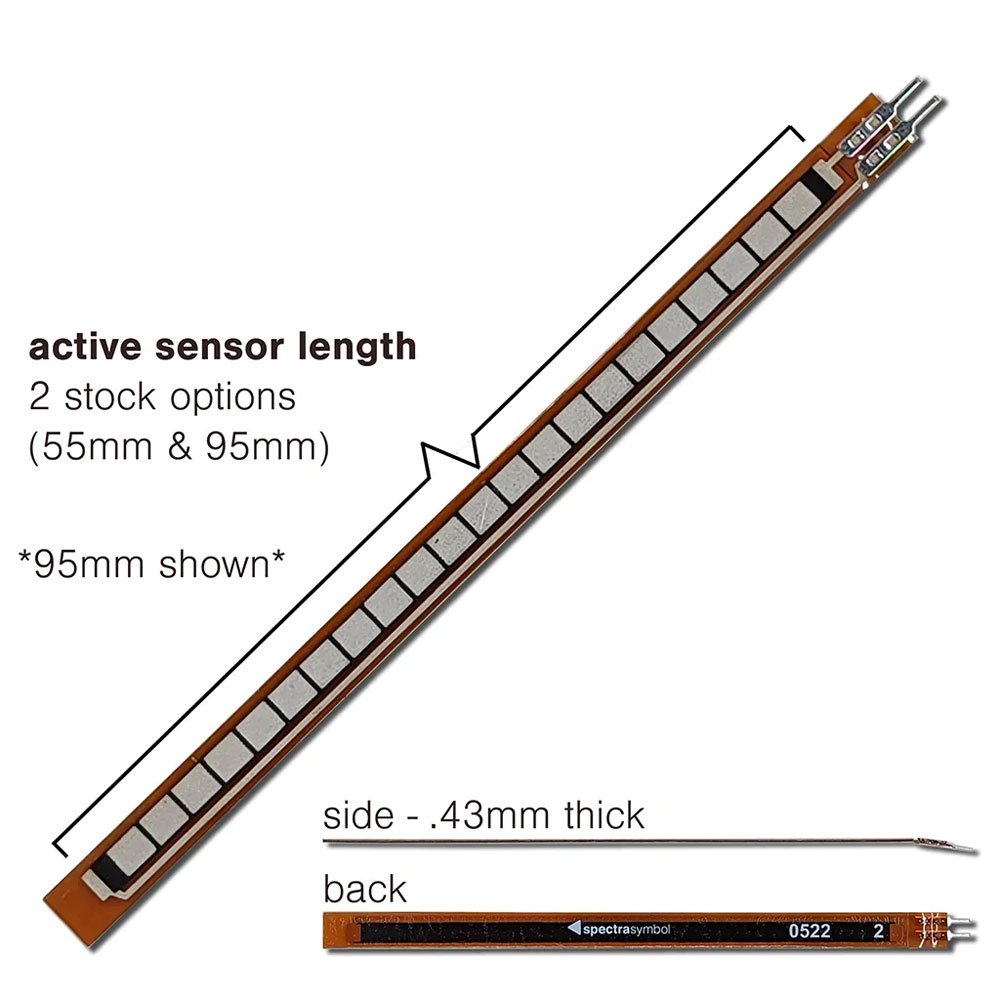

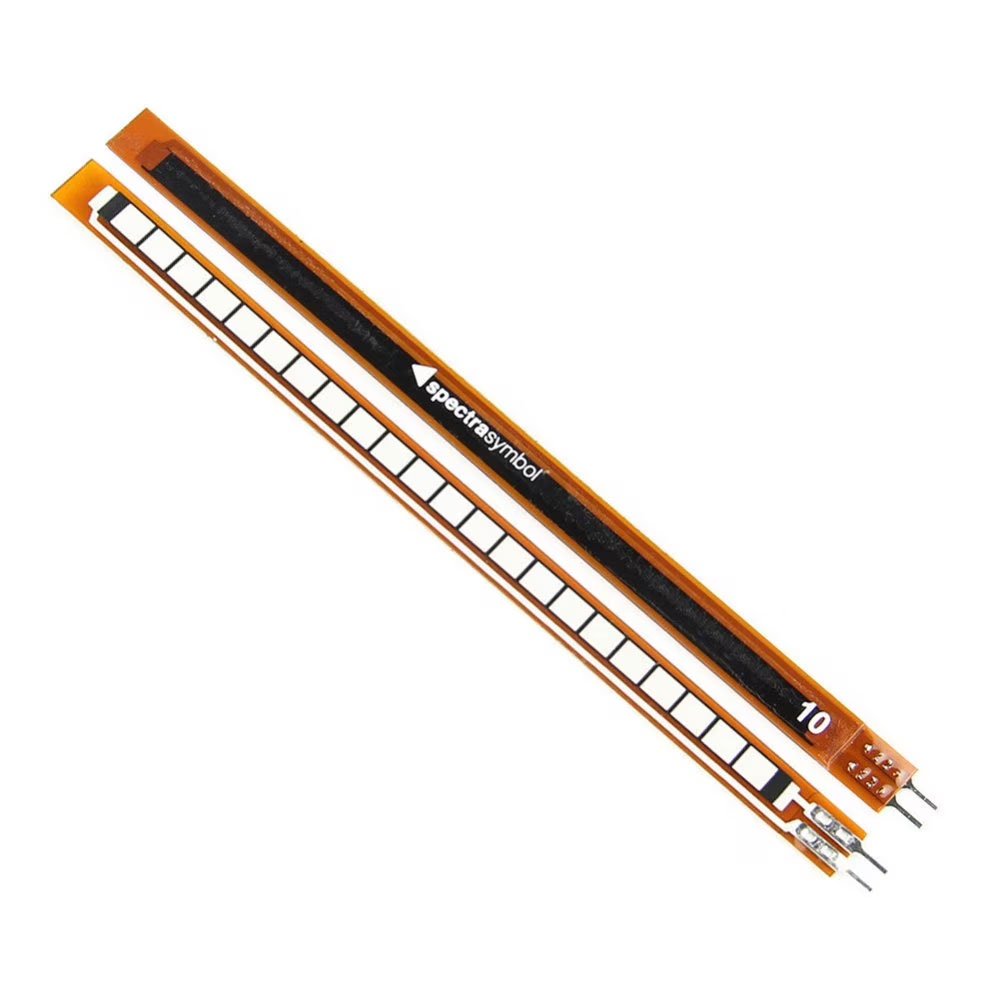

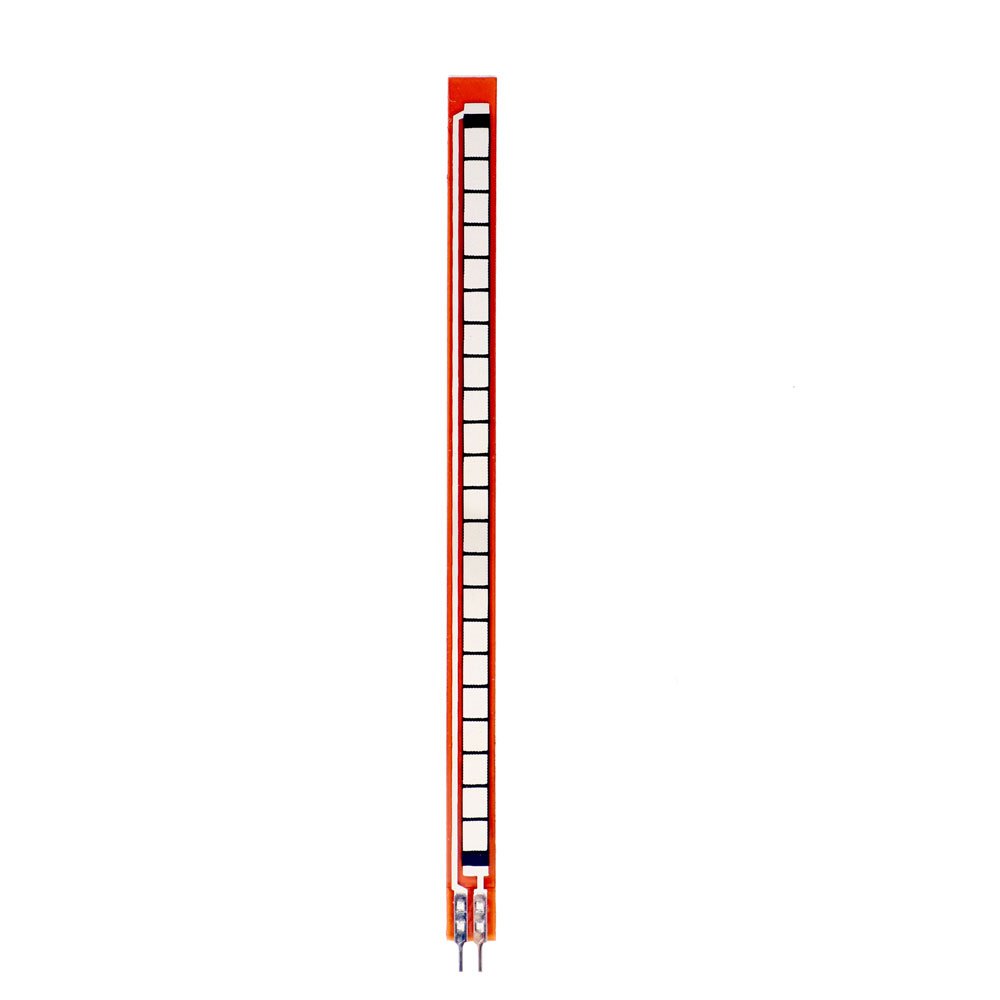

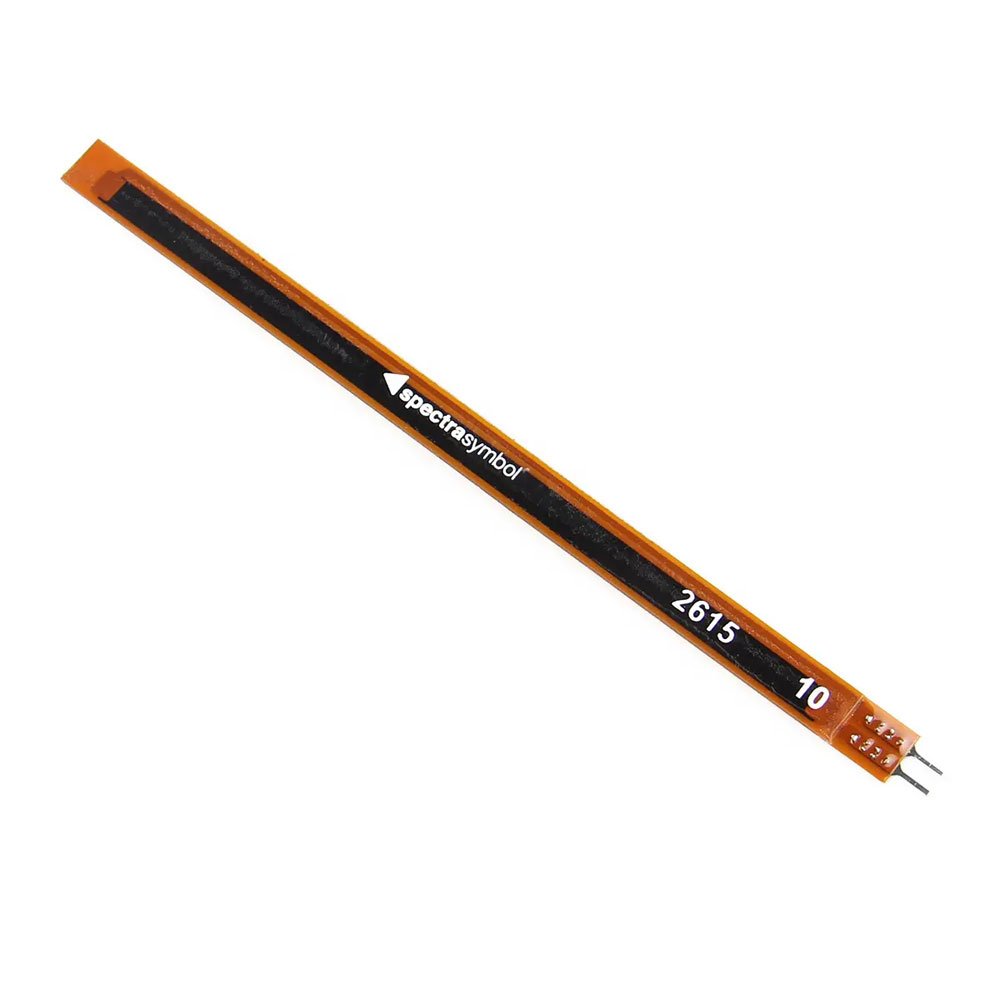

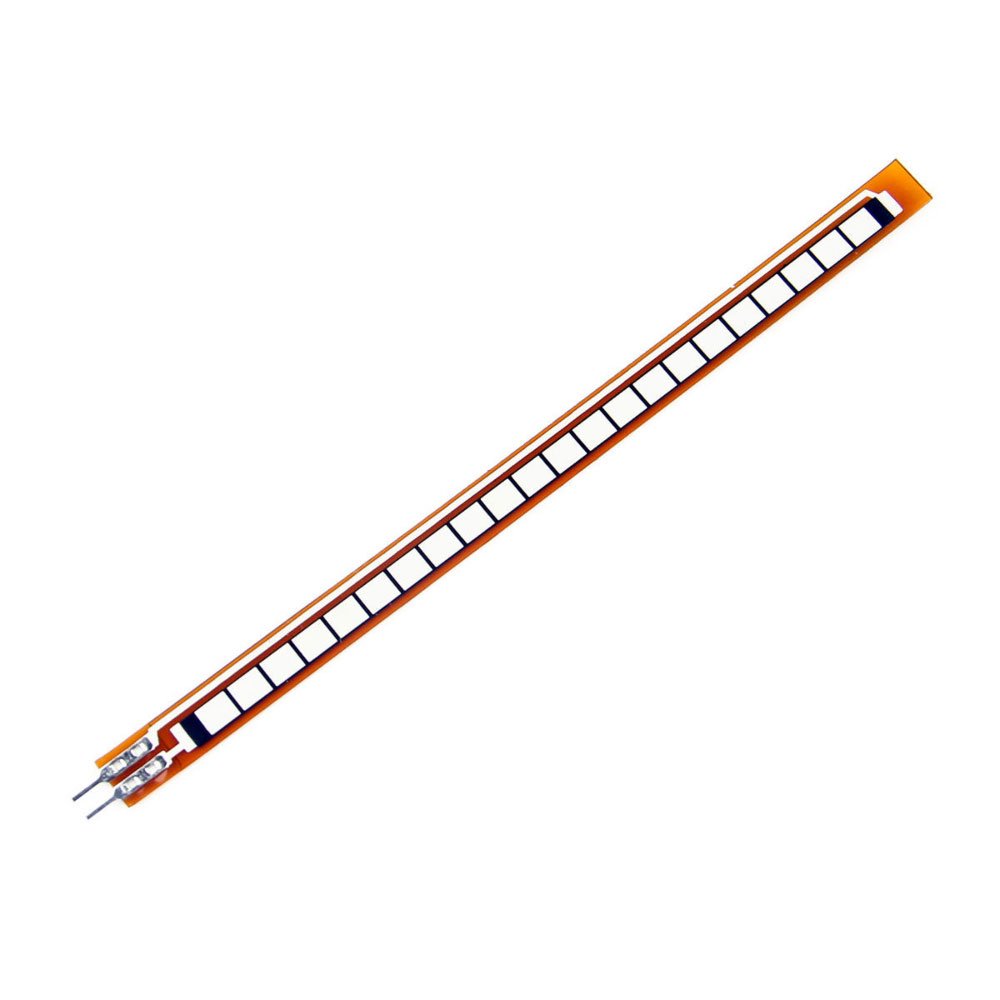

The Flex Sensor 4.5Inch is an extended-length bend sensor that changes resistance based on the degree of flexing. Compared to shorter sensors, it offers a wider sensing area, making it perfect for applications requiring larger movement detection such as robotic limbs, wearable tech, and human motion tracking systems.

📌 Specifications:

• Sensor Type: Flex (bend) sensor
• Length: 4.5 inches
• Resistance (flat): ~10KΩ
• Resistance (bent): up to ~60K–100KΩ
• Operating Voltage: 3.3V–5V (via voltage divider)
• Output Type: Analog
• Response Time: Fast and responsive
• Durability: High cycle life

⚡ Features:

• Detects bending with high sensitivity
• Longer length for wider motion tracking
• Flexible and durable construction
• Easy to interface with microcontrollers
• Stable and repeatable readings
• Low power consumption

🎯 Benefits:

• Perfect for full-hand gloves and body motion tracking
• Enables more accurate angle detection over larger areas
• Ideal for robotics, prosthetics, and interactive systems
• Easy integration for both beginners and advanced users

❓ Why Choose This Product?

The Flex Sensor 4.5Inch is the ideal solution for projects that require extended bend detection. Its longer length allows for more precise motion tracking across larger surfaces, making it a top choice for advanced robotics, wearable tech, and human-interface applications.

📦 Package Content:

• 1 × Flex Sensor 4.5Inch

📜 Documents:

• Datasheet
