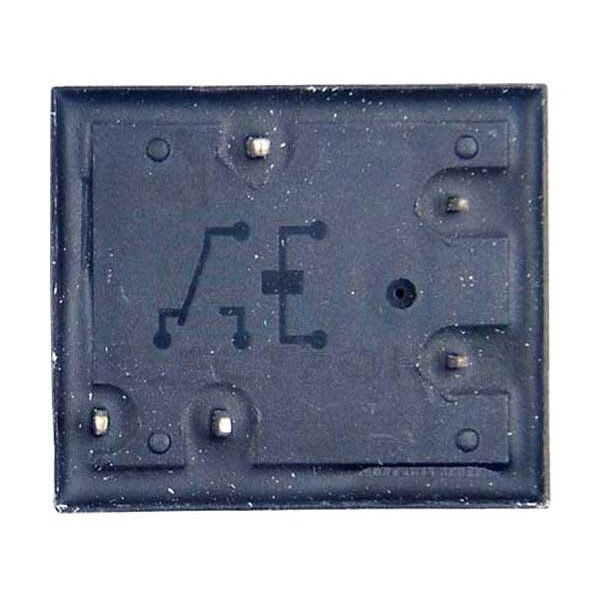

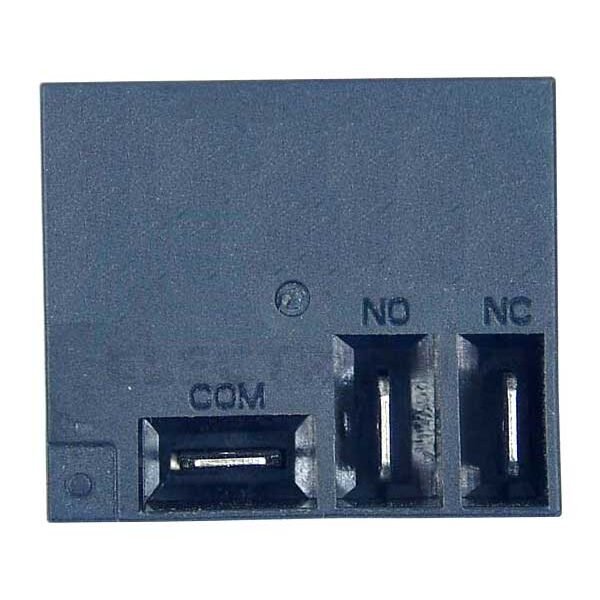

JQX-16F-T91 Power Relay 24Vdc Coil, 30A,250Vac
JQX-16F-T91 Power Relay 24Vdc Coil, 30A,250Vac
- 30A switching capability
- PCB coil terminals, ideal for heavy duty load
- 2.5kV dielectric strength (between coil and contacts)
- Plastic sealed and flux proofed types available
- UL insulation system: Class F available
Safe shopping
Your data is always protected
Sale_coupon_15
60.00 EGP
Out of stock
Out of stock
19
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
JQX-16F-T91 Power Relay 24Vdc Coil, 30A,250Vac
- 30A switching capability
- PCB coil terminals, ideal for heavy duty load
- 2.5kV dielectric strength (between coil and contacts)
- Plastic sealed and flux proofed types available
- UL insulation system: Class F available
Specifications:
| Attribute | Value |
| Coil Voltage | 24V dc |
| Contact Configuration | SPNO |
| Mounting Type | PCB Mount |
| Switching Current | 30A |
| Number of Poles | 1 |
| Terminal Type | Through Hole |
| Coil Resistance | 660 ? |
| Length | 32mm |
| Height | 27.5mm |
| Series | T91 |
| Depth | 31.6mm |
| Application | Power |
Package Includes:
- 1x Power Relay
Product Datasheet:
