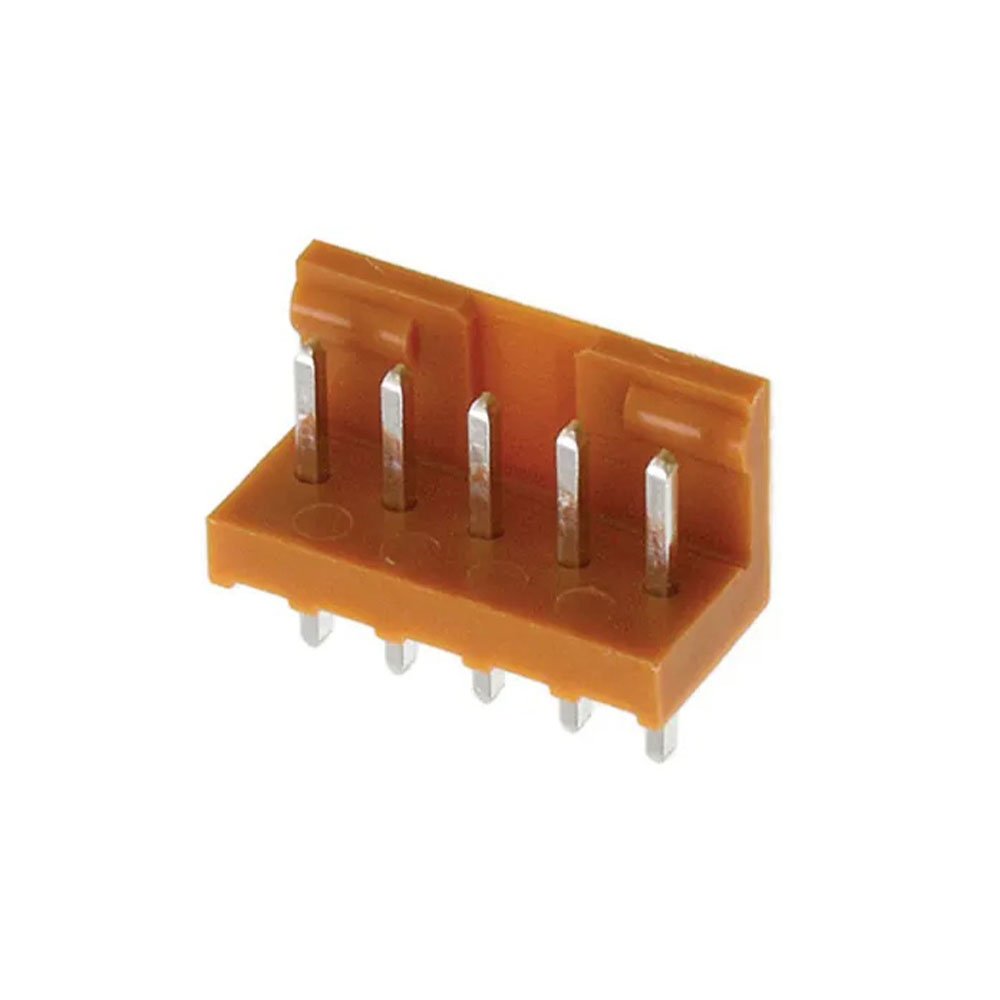

JAE IL-G Series 5Pin Male Straight PCB Header 2.54mm
JAE IL-G Series 5Pin Male Straight PCB Header 2.54mm
- Low profile 10 mm mated height
- Polarization key to prevent mis-mating
- Friction lock for secure mating connection
- Resistant to solder flux contamination
Safe shopping
Your data is always protected
Sale_coupon_15
2.00 EGP
Out of stock
Out of stock
12
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
JAE IL-G Series 5Pin Male Straight PCB Header 2.54mm
IL-G series 2.5 mm wire to board PCB pin header connectors with a low profile design, having a height of just 10 mm when mated. These housings of these PCB pin headers feature a polarization key to prevent mis-mating and a friction locking mechanism for a secure mating connection. These IL-G series headers are available straight or right angle mounting and mate with the IL-G series crimp housings.
- Low profile 10 mm mated height
- Polarization key to prevent mis-mating
- Friction lock for secure mating connection
- Resistant to solder flux contamination
Specifications:
| Attribute | Value |
| Series | IL-G |
| Pitch | 2.5mm |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Brass |
| Current Rating | 3.0A |
Package Includes:
- 1x JAE 5Pin Male Header
Datasheet:
