10W Optical Output Power Laser Module | LASER TREE
10W Optical Output Power Laser Module | LASER TREE
- Model: LT-80W-AA-Pro
- Optical Power: 10W(±1W)
- Input Voltage: 12Vdc 3A
- Wavelength: 450nm(±10nm)
- Focus Length: 45mm
- Fan Speed: 10000rpm
- Cable: 3PIN,80cm
- Module Dimensions:
- Length: 40mm
- Width: 40mm
- Hight: 147mm
- Weight: 250g
Safe shopping
Your data is always protected
Sale_coupon_15
Original price was: 18,500.00EGP.16,000.00EGPCurrent price is: 16,000.00EGP.
19
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
10W Optical Output Power Laser Module | LASER TREE
- WITH AIR-ASSISTED: Equipped with “L” type high pressure air-assisted nozzle to improve cutting performance and reduce burn marks.
- FAC COMPRESSION TECHNOLOGY: Smaller spot size, better cutting performance and higher engraving accuracy. It can cut 8mm thick plywood at a speed of 1.8mm/s at one time.
- PROTECTIVE LENS DESIGN: When the lens is damaged or after long time use, the lens can be disassembled and replaced to restore the cutting ability. This greatly improves the service life of the laser.
- WIDE COMPATIBILITY: The laser module has an ingenious and widely compatible structural connection device, which can be well adapted to different brands of laser engraving and cutting machines. Such as ATOMSTACK, ORTUR, NEJE, Sculpfun and so on.
Specifications:
- Model: LT-80W-AA-Pro
- Optical Power: 10W(±1W)
- Input Voltage: 12Vdc 3A
- Wavelength: 450nm(±10nm)
- Focus Length: 45mm
- Fan Speed: 10000rpm
- Cable: 3PIN,80cm
- Module Dimensions:
- Length: 40mm
- Width: 40mm
- Hight: 147mm
- Weight: 250g
Professional Air Assist
Upgraded 6mm diameter air nozzle has an advanced hydrodynamic design, which better reduces air resistance and faster jet airflow.

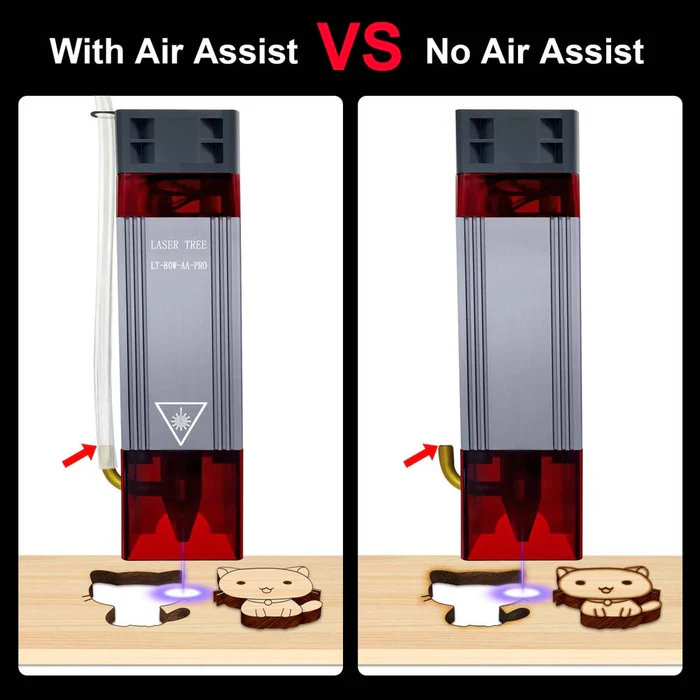

With Air Assist VS No Air Assist
Blowing through the air nozzle to get clean-cut edges, improve cutting performance without Air Nozzle: Scorched Edges with Air Nozzle: Clean-Cut Edges

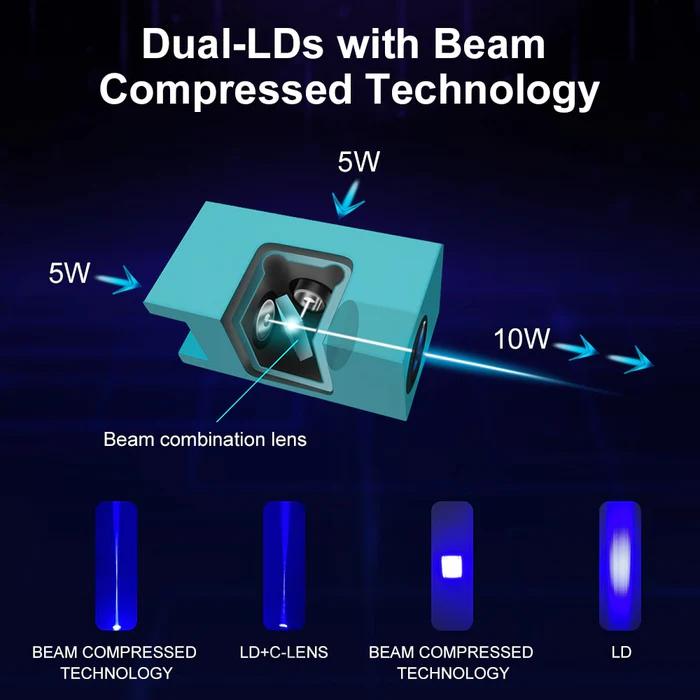

Dual-LDs With Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

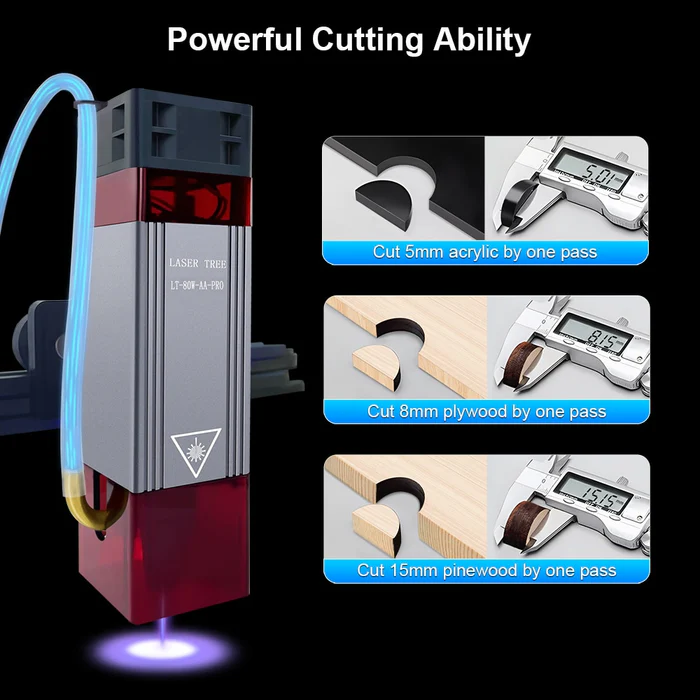

Powerful Cutting Ability
Cut 8mm plywood: 120mm/min,100% power. By one pass
Cut 5mm black acrylic: 50mm/min,100% power. By one pass
Cut 5mm MDF: 150mm/min,100% power. By 2 pass

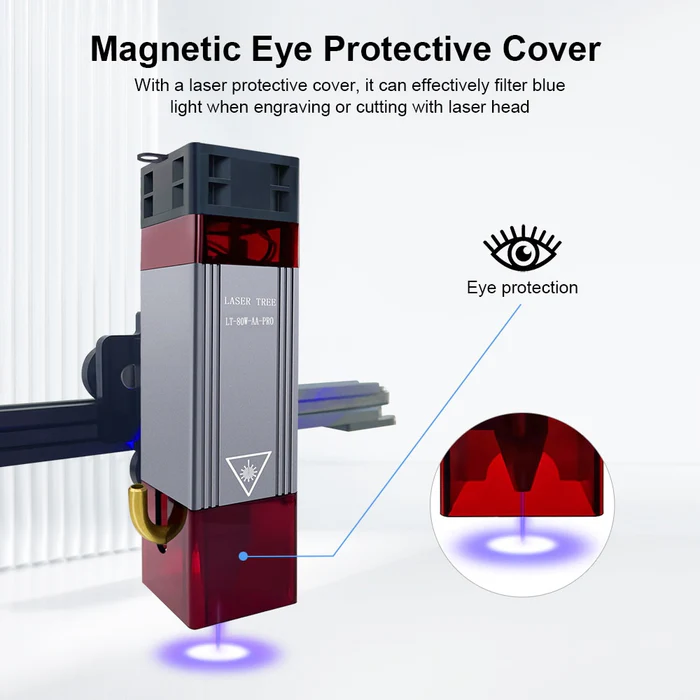

Magnetic Protective Cover
With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head, safe and convenient

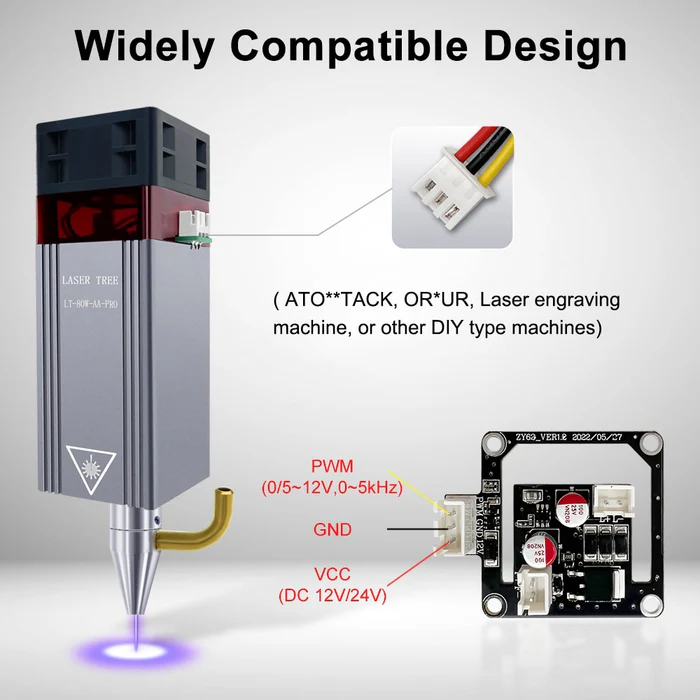

Widely Compatible Design
Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines

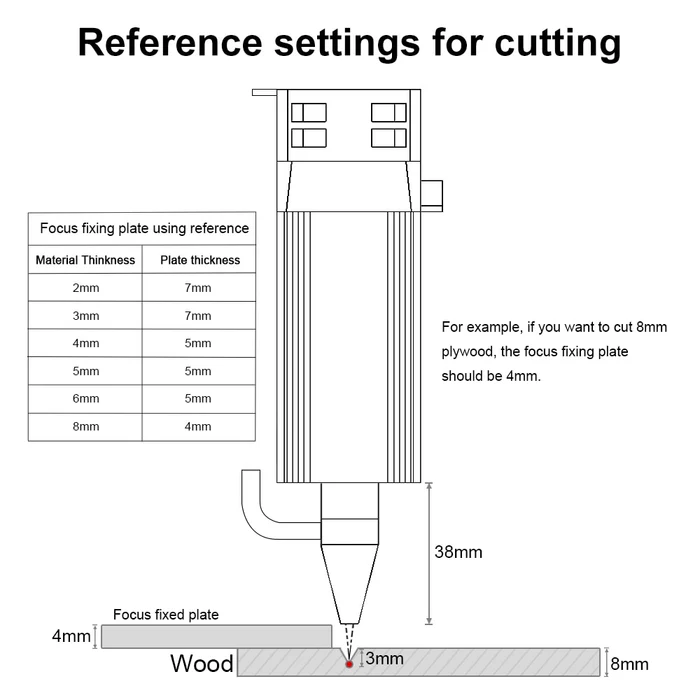

Reference Settings for Cutting

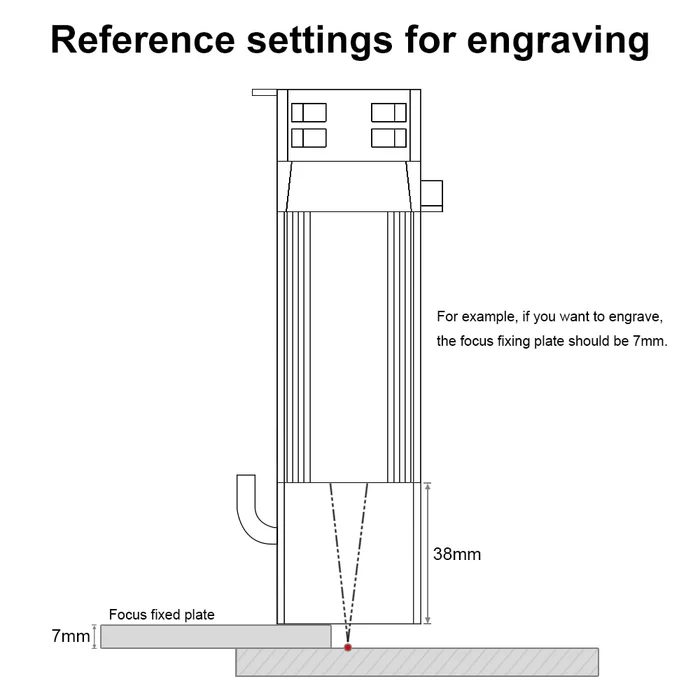

Reference Settings for Engraving

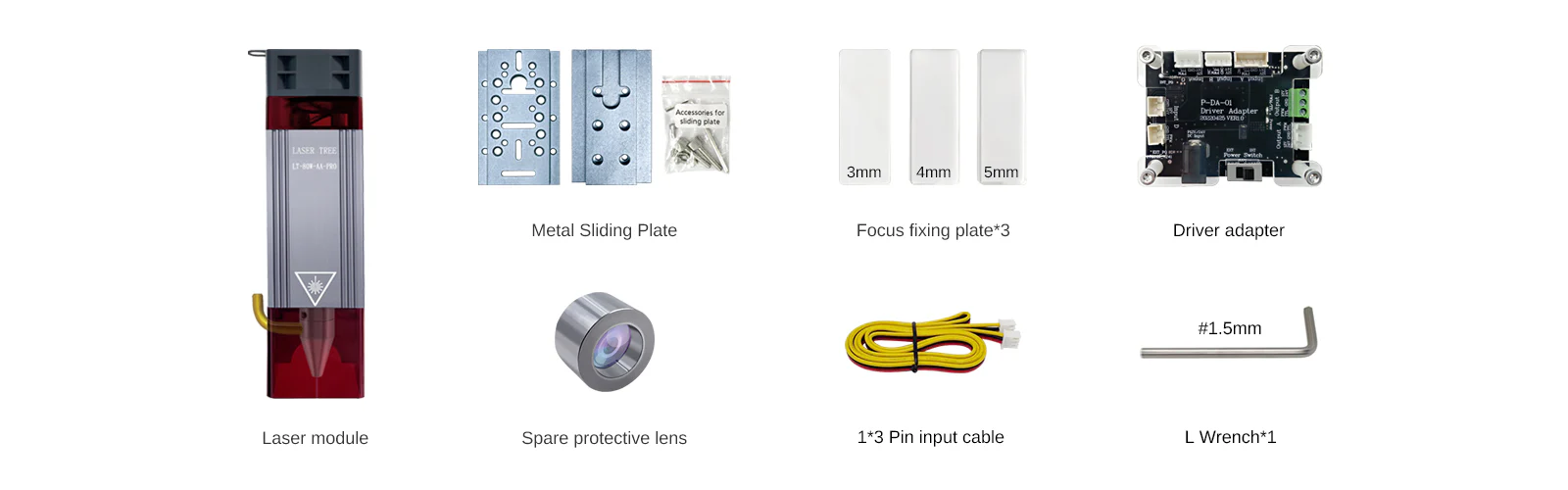

Package Lists
